Principle

It is easy to tell the measuring, operator can tell measuring range easily by eyesight even in the remote site.

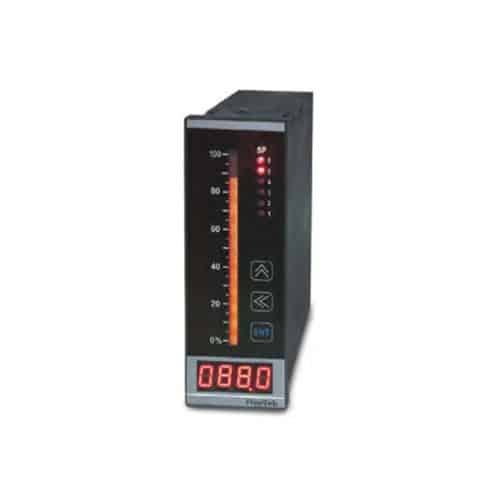

Provides not only 4 digits numerical display with bargraph analog output indicator but also 6 relay setting points. It makes users to tell Process setting position without difficulties by bargraph indicator. In general, it is an easy applied and understand model to customers.

PB-2471 is designed for dual channel applications. It can measure 2 input signals simultaneously by only one meter. Also, it supports 2 channels analog output signals and 4 relay contacts. To users, it provides both convenient panel layout operation and relatively lower cost when compared with using two panel meters.

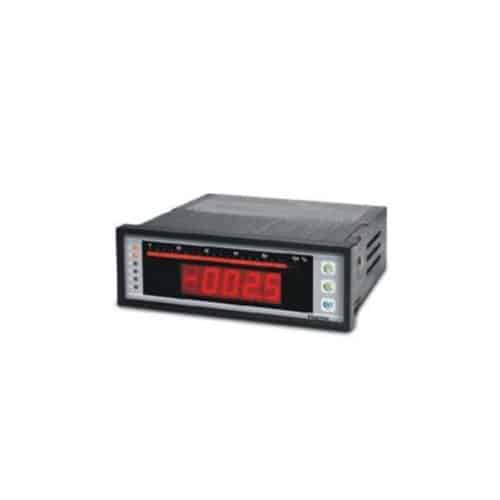

PB-1570 and PB-1470 are horizotal mounting design, all functions are same as vertical models

Features

• Dual Channel, dual Bargraph and dual Analog output Capability.
• Non-Linear Vessel Volume conversion/correction.
• Modualized Signal Input Support all process signals and ACV, ACA……..
• Modualized Option Output Support up to 8 Relays, 2 Analog outputs and RS485 interface.
• Inputs and Outputs are isolated.
• ModBus Communication Protocol.
• Wide Range Power Supply: AC85 ~ 265V or DC18~36V.
• IP-65 Class Front Panel.
